317L Stainless Steel Plate
- Commodity name： 317L Stainless Steel Plate
Keyword:
317L Stainless Steel Plate
- PRODUCT DESCRIPTION
-
317L Stainless Steel Plate Description
317L is a low-carbon austenitic stainless steel containing molybdenum. More chromium, nickel and molybdenum are added to obtain better corrosion resistance and increase the resistance to sulfurous acid, acetic acid, formic acid, citric acid and tartaric acid. Resistance to chemical attack. Due to its low carbon content, 317L also provides resistance to sensitization during welding, as well as higher creep, rupture stress and high temperature tensile strength. It is non-magnetic in the annealed state, but may become slightly magnetic after welding.
Product ParametersProduct Name
317L Stainless Steel Plate
Type
Plate
Thickness
0.3mm-200mm
Length
2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width
40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application
Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,
Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate
ISO, SGS, BV, etc.
Production Technology
Hot Rolling, Cold Rolling
Edge Processing
Edging, Trimming
Chemical Composition
C
Si
Mn
Cr
Ni
S
P
Mo
≤ 0.035
≤ 0.75
≤ 2.0
18.0～20.0
11.0～15.0
≤ 0.03
≤ 0.04
3.0～4.0
Mechanical Properties
Tensile Strength Kb (MPa)
Yield Strength σ0.2 (MPa)
Elongation D5 (%)
Hardness
≥480
≥177
≥ 40
≤ 187HB;≤ 90HRB;≤ 200HV
Physical Performance
Density(g/cm³)
Modulus of Elasticity(Gpa)
Coefficient of Thermal Expansion(10-6/°C)
Coefficient of Thermal Conductivity(W/m*K)
Resistivity(ΜΩ. cm)
7.99
193
16.0
16.2
79
Surface Selection

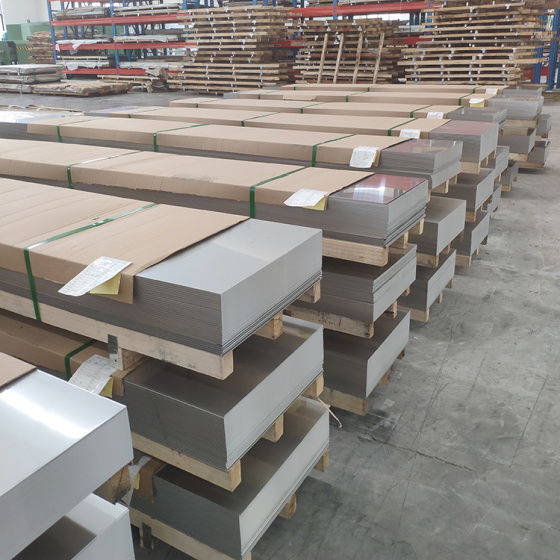

Packing and delivery
Our company adheres to the principle of reputation first and small profits but quick turnover, and expands the market with high-quality services and flexible business models. Our product quality, price, service and reputation remain the same as before. With the strong assistance and support of new and old customers, we continue to grow and become a professional steel export manufacturer.
Application areas
Its products are suitable for various fields such as automobiles, motorcycles, power, machinery, hydraulic accessories, bearings, pneumatic components, oil cylinders, coal mines, conveyors, boiler equipment, pipelines, engineering, etc. Our company has 5 perforation units, 30 precision rolling machines, and 6 cold drawing machines.
Factory appearance
It is a specialized manufacturer and seller of carbon steel, steel bars, stainless steel, galvanized, hot-rolled seamless steel pipes, precision seamless steel pipes, cold drawn seamless steel pipes, alloy pipes, special-shaped pipes, etc.
